Press Brake Punches

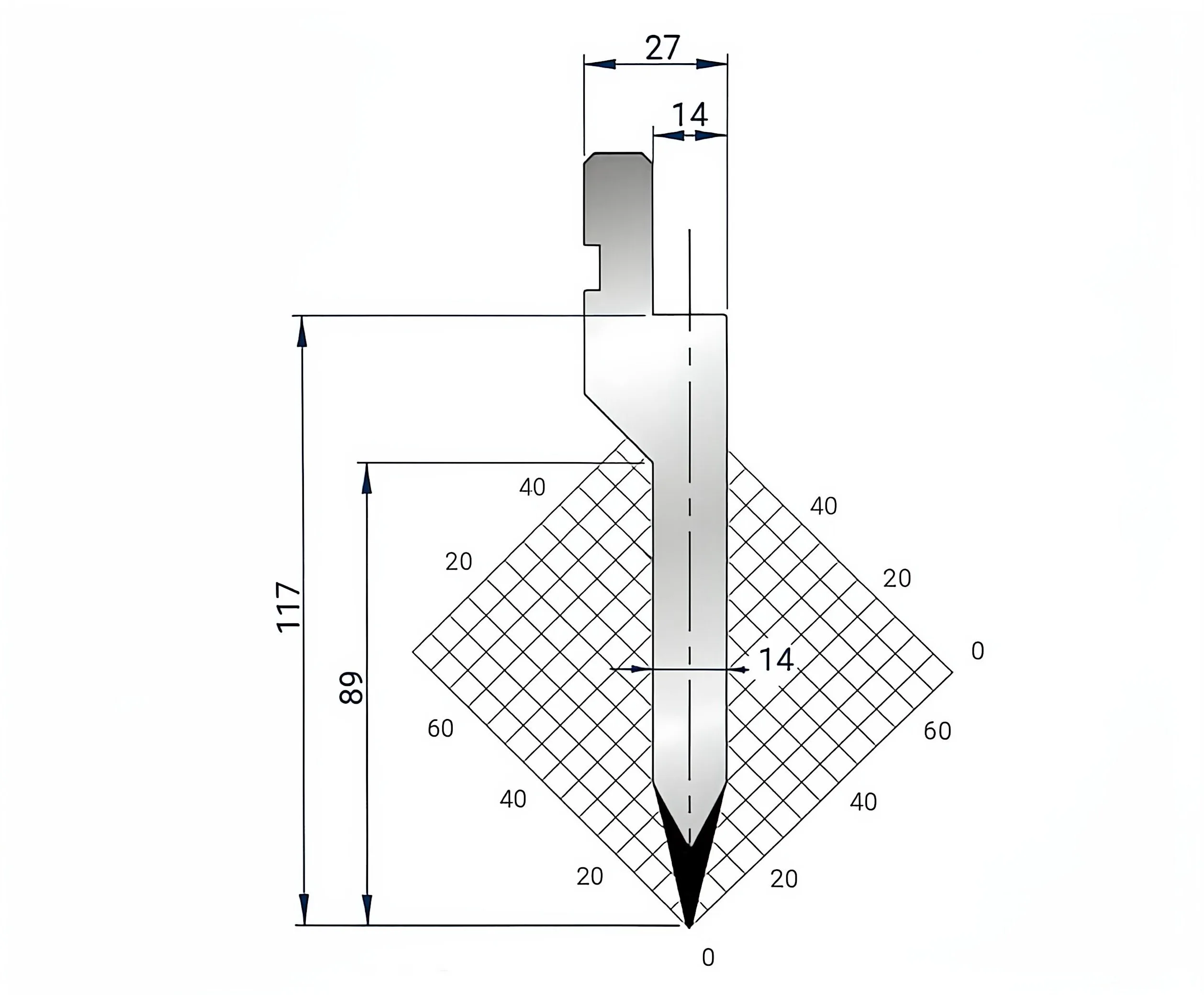

Amada Promecat

Angle: 26° | Radius: R 0.8 mm | Height: 117 mm | Load: 1000 kN/m max.

Material: 42CrMo, 650 - 800 N/mm²

Amada Promecat

Model:FMP.117.26°.R1

Angle: 26° | Radius: R 1 mm | Height: 117 mm | Load: 1000 kN/m max.

Material: 42CrMo, 650 - 800 N/mm²

Press Brake to Punch

Model:P.117.26°.R08

Angle: 26° | Radius: R 0.8 mm | Height: 117 mm | Load: 1000 kN/m max.

Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Model:FMP.145.26°.R08

Angle: 26° | Radius: R 0.8 mm | Height: 145 mm | Load: 1000 kN/m max.

Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Amada Promecam

Amada Promecam

Angle: 45; Radius: R 6 mm; Height: 50 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Angle: 26; Radius: R 0.8 mm; Height: 117 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Model:FMP.117.26..R1

Angle: 26; Radius: R 1 mm; Height: 117 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

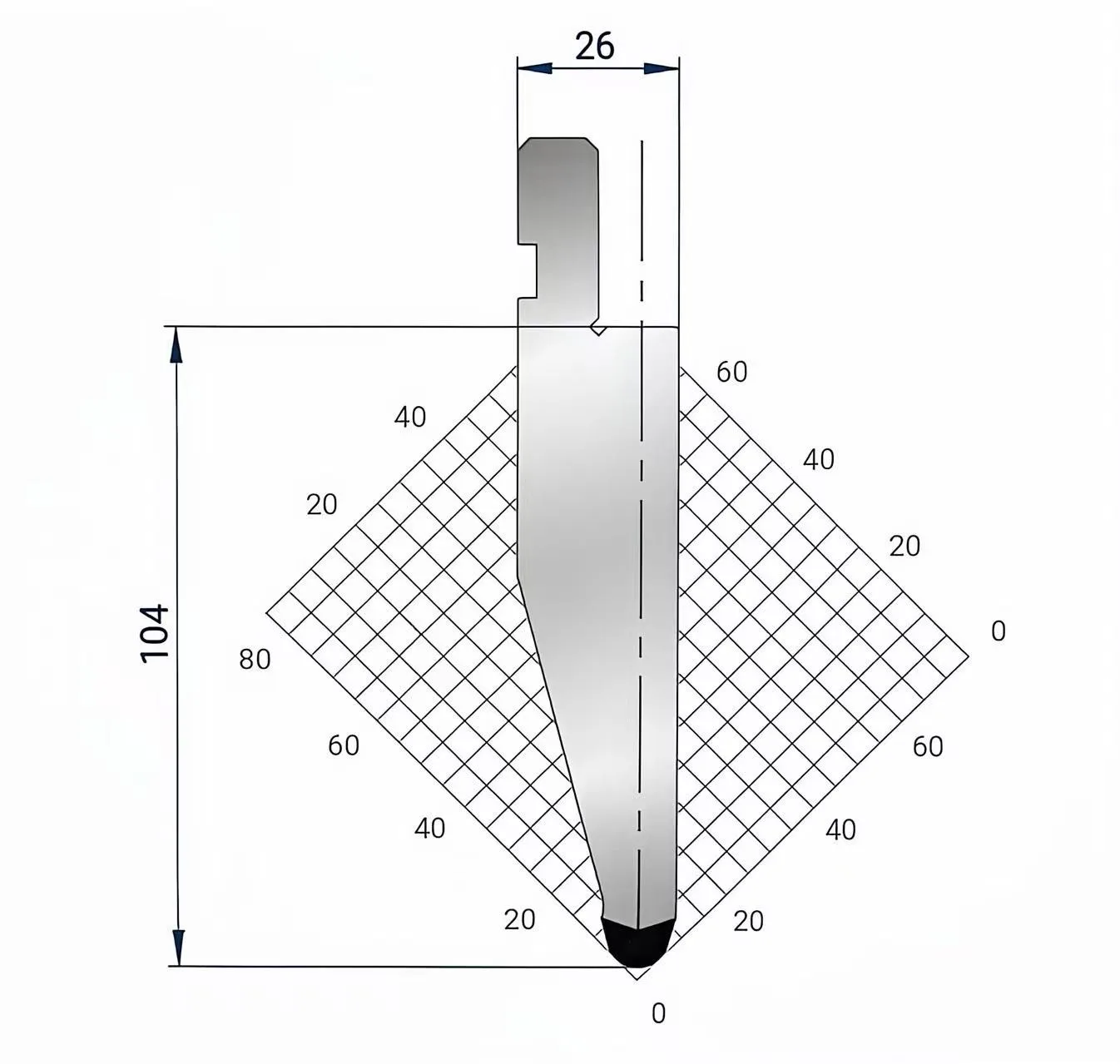

Amada Promecam

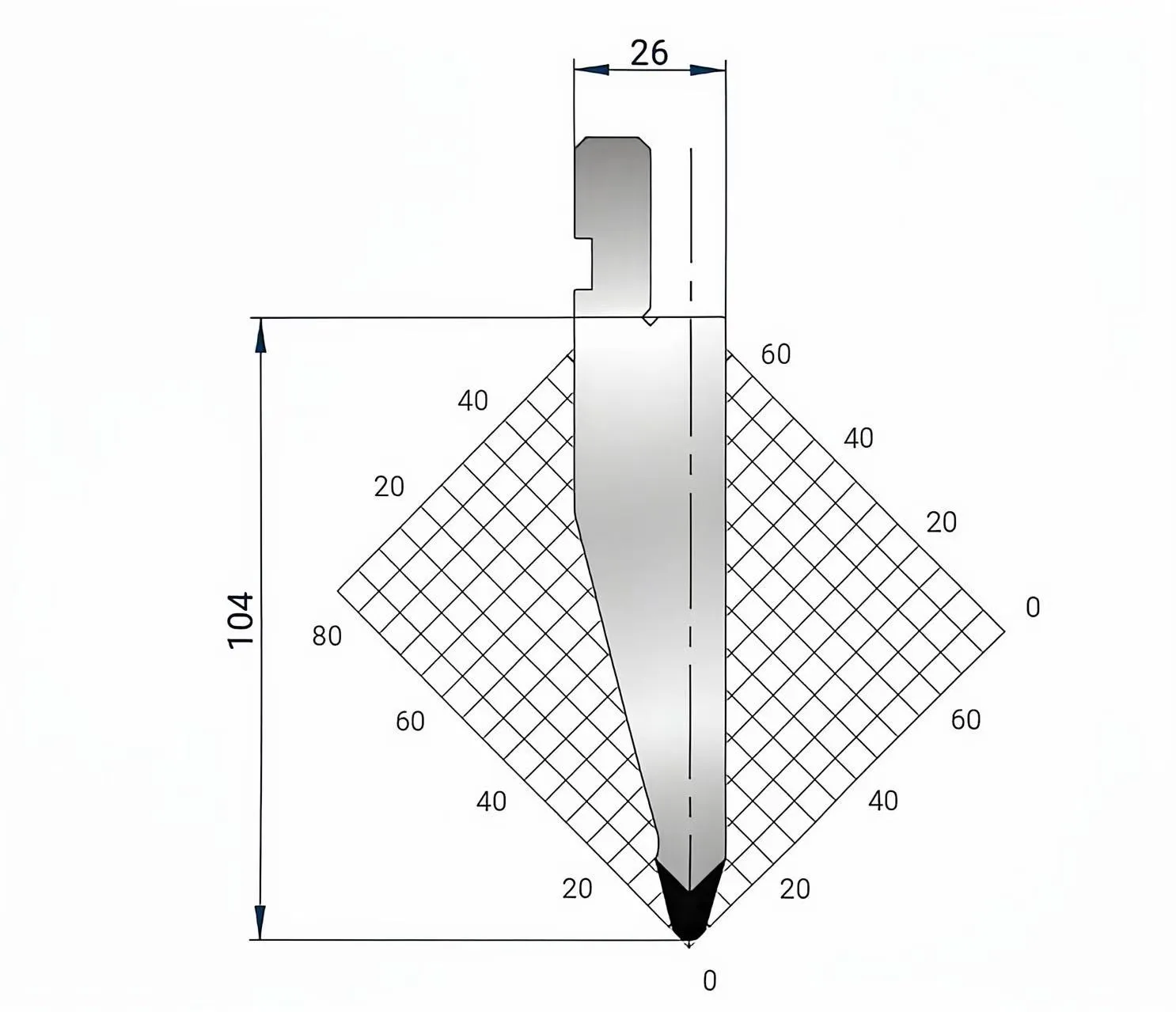

Angle: 30; Radius: R 5 mm; Height: 104 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

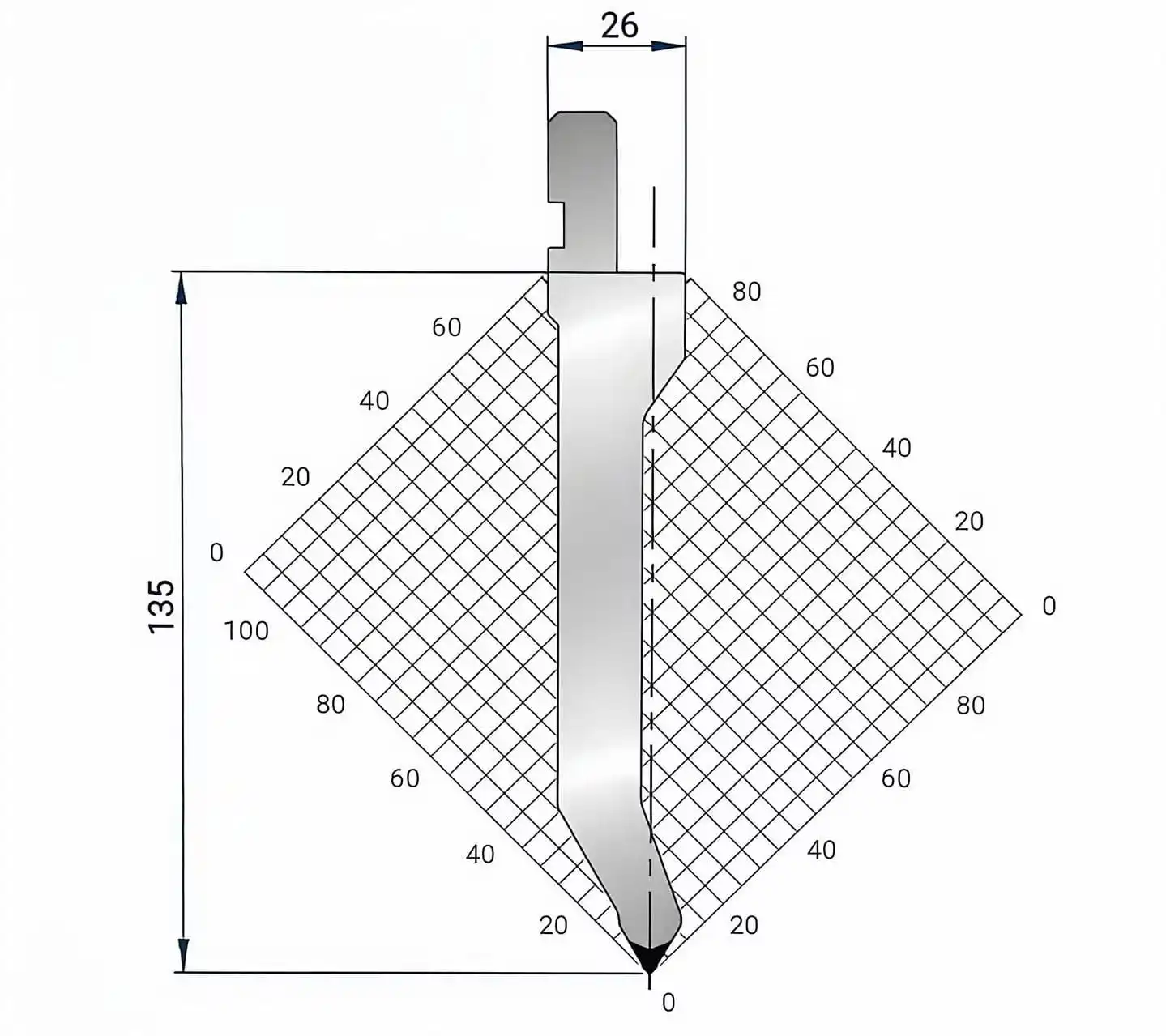

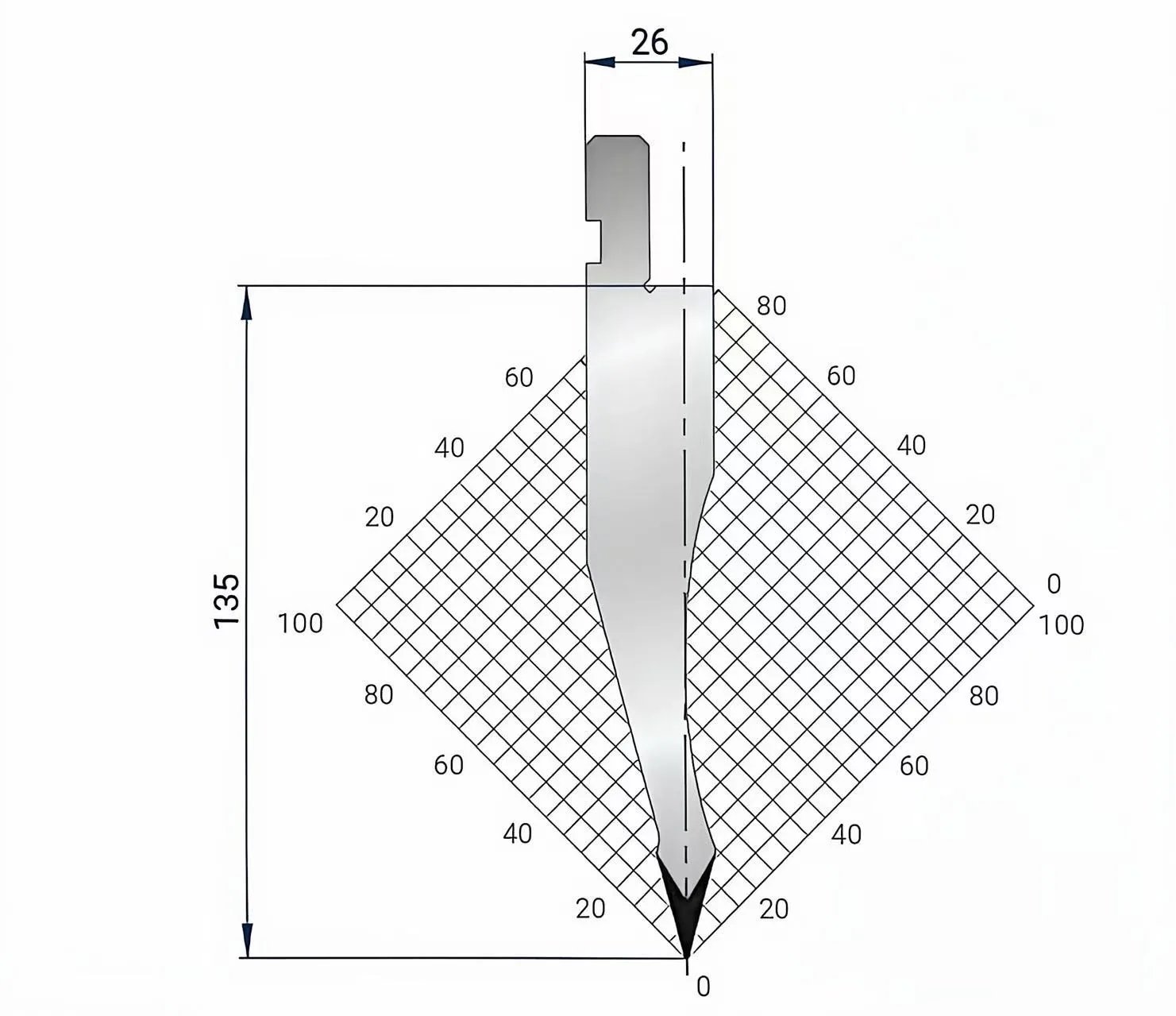

Angle: 30; Radius: R 0.5 mm; Height: 135 mm; Load: 500 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

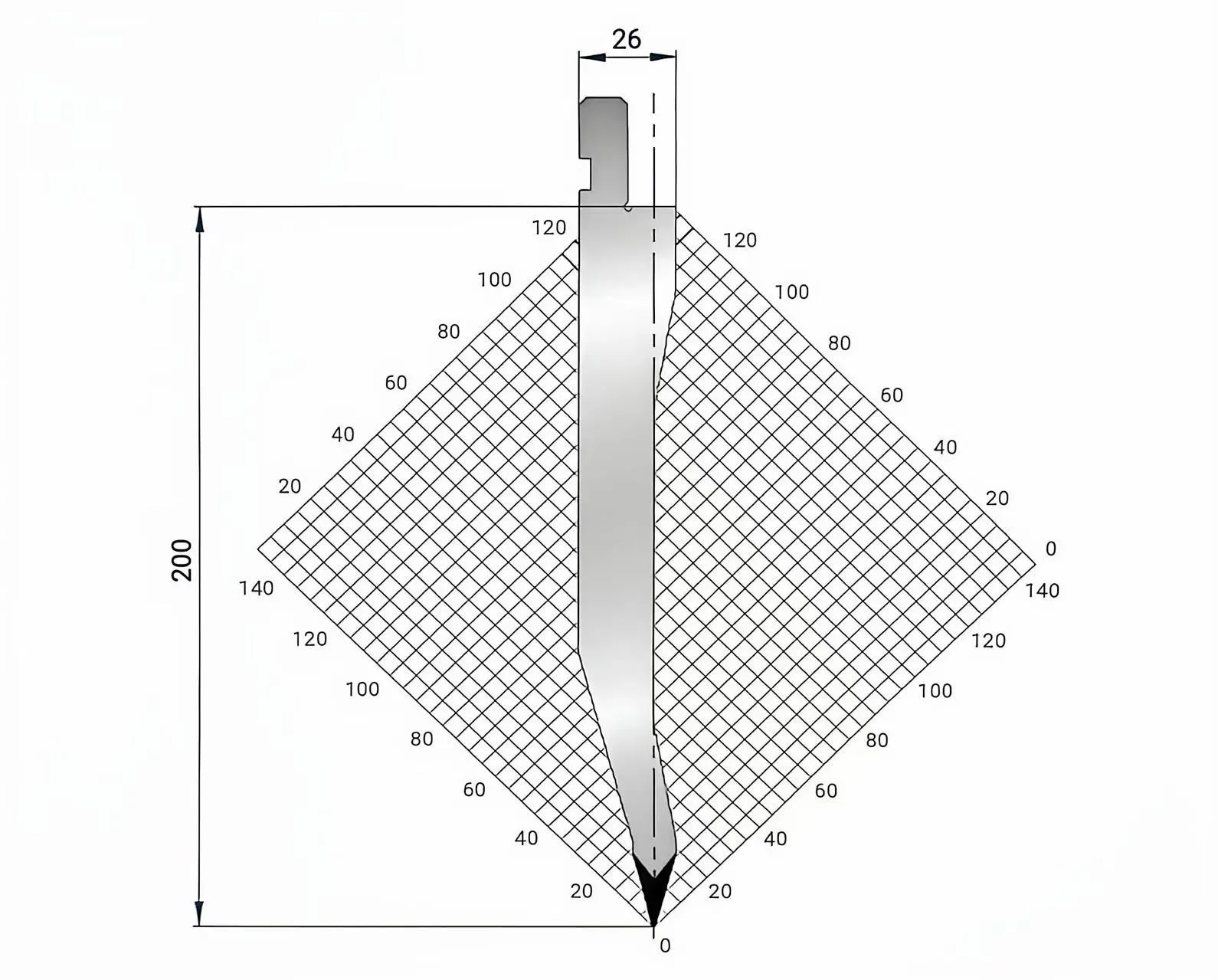

Angle: 35; Radius: R 0.5 mm; Height: 200 mm; Load: Max. 500 kN/m; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Angle: 30; Radius: R 3 mm; Height: 104 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

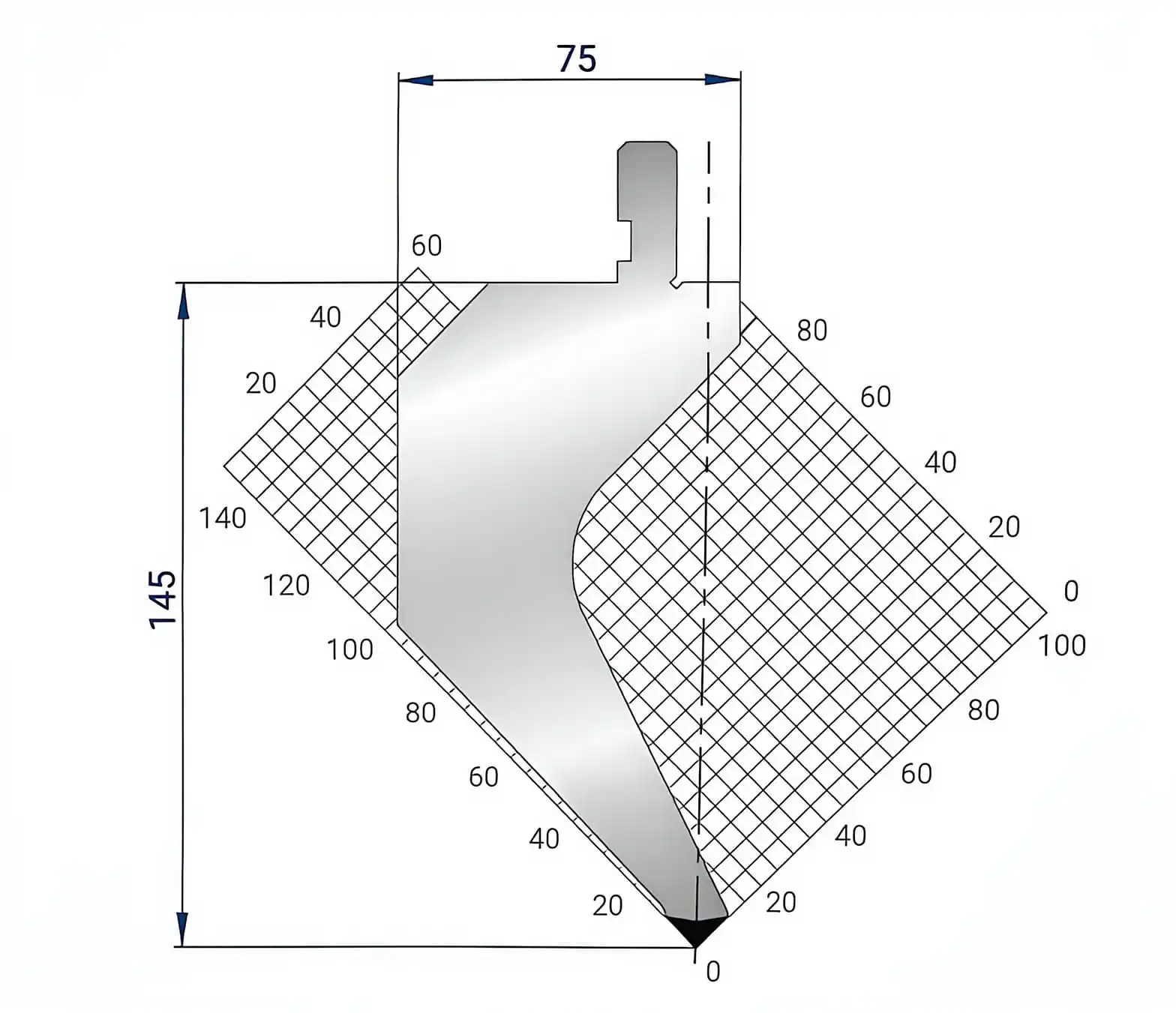

Amada Promecam

Angle: 88; Radius: R 0.8 mm; Height: 145 mm; Load: Max. 800 kN/m; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Angle: 45; Radius: R 0.5 mm; Height: 66 mm; Load: Max. 800 kN/m; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

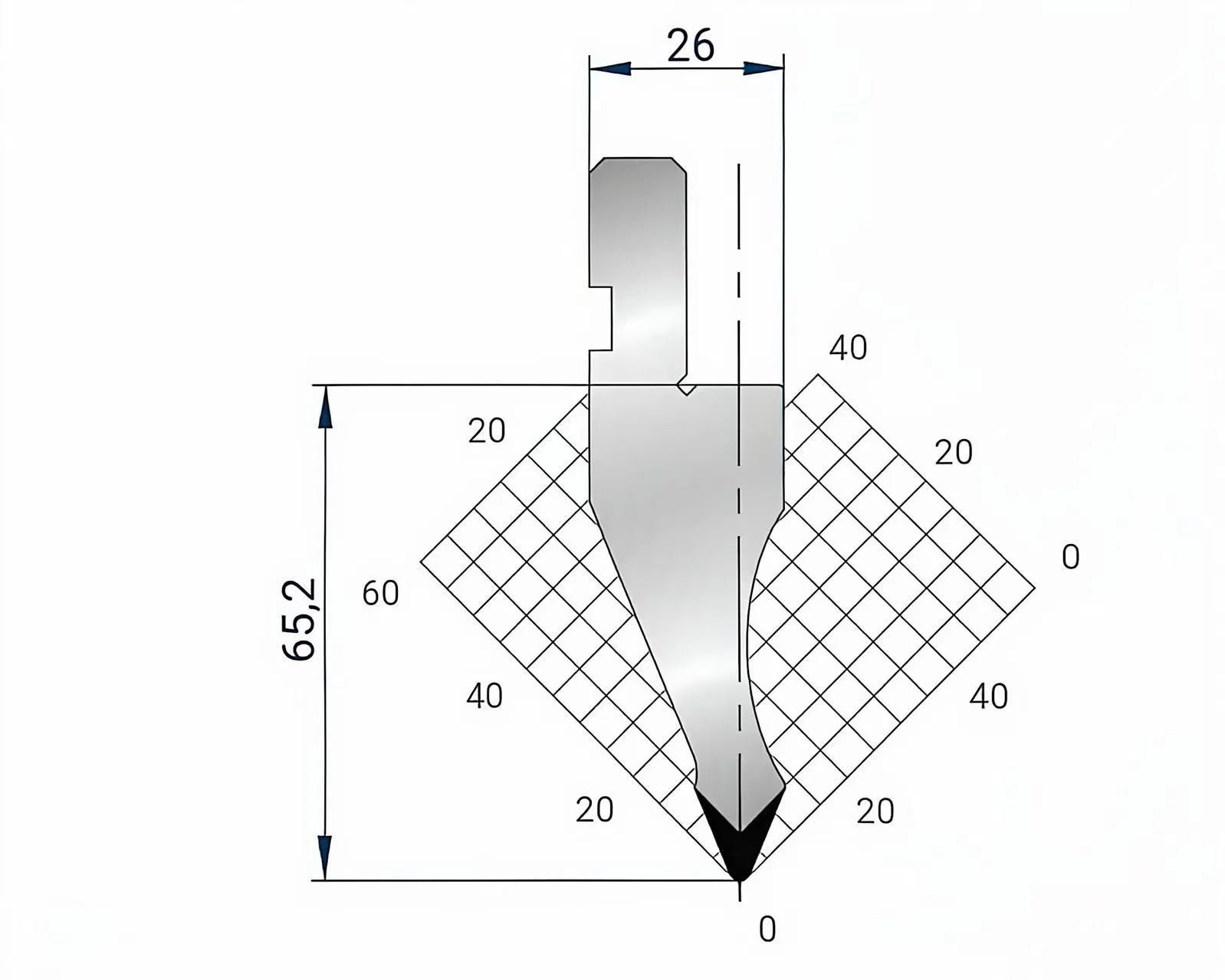

Angle: 60; Radius: R 6 mm; Height: 65 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

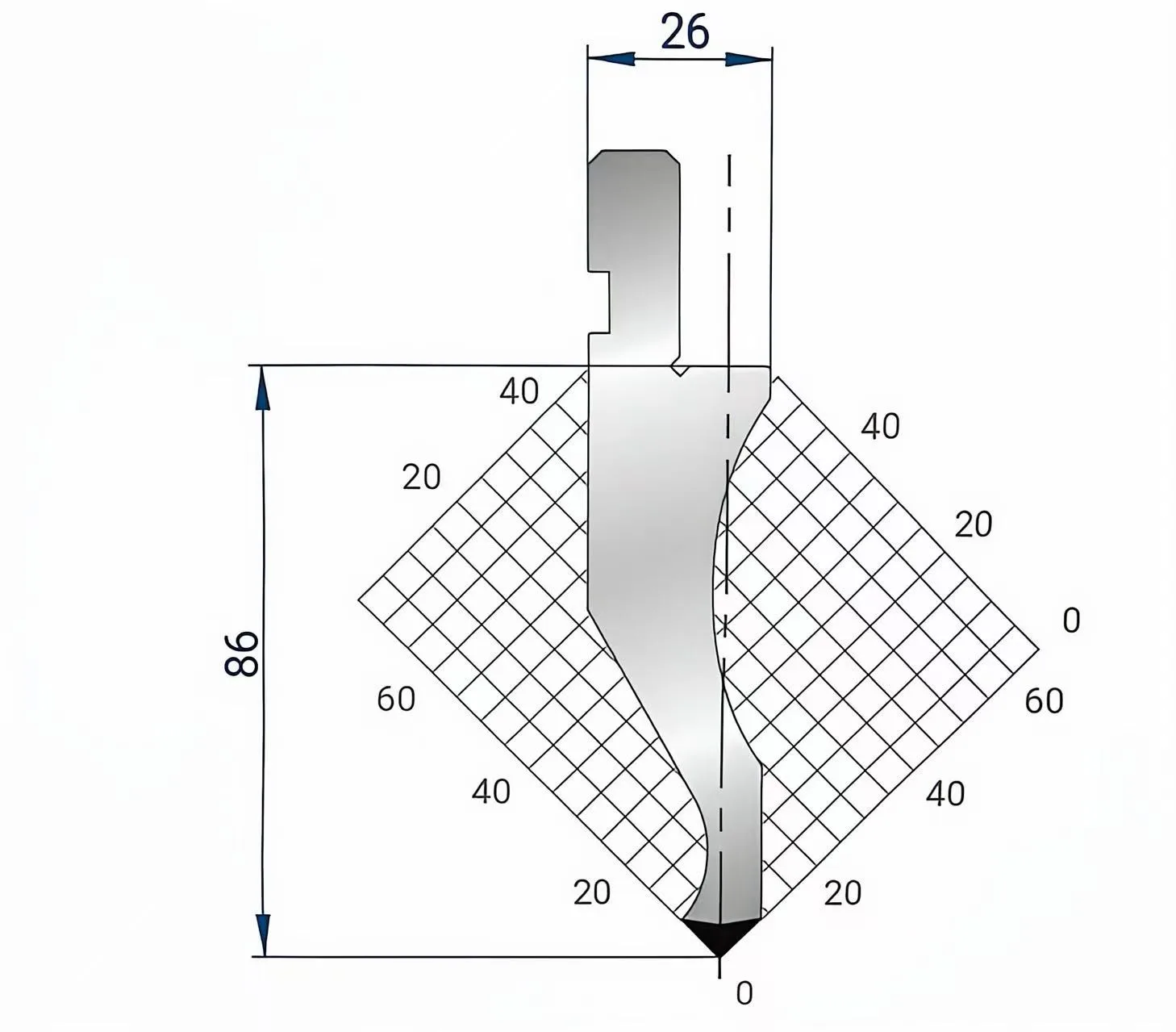

Amada Promecam

Angle: 88; Radius: R 0.8 mm; Height: 86 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²

Amada Promecam

Amada Promecam

Angle: 88; Radius: R 3 mm; Height: 85 mm; Load: 1000 kN/m max.; Material: 42CrMo, 650 - 800 N/mm²
